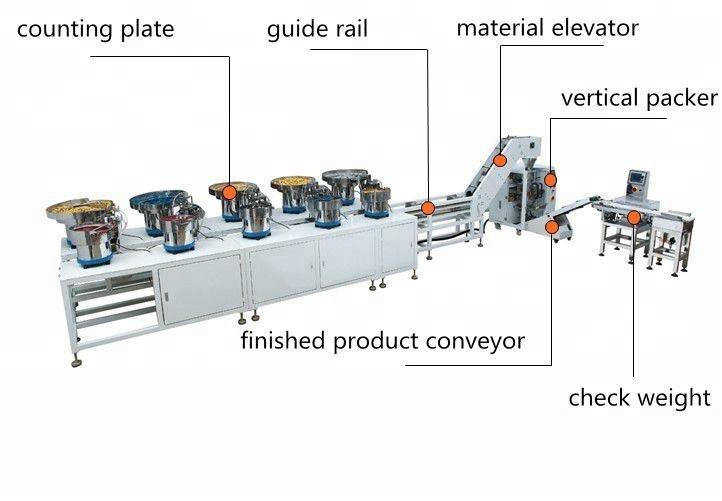

screw counting packing machine
1. screw counting packing machine with imported PLC computer control system,color touch screen,easy operation and much more stable;
2. Seperate pneumatic control and power control with low noise and more stable circuit ;
3. Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation;
4. Multiple automatic alarm protection,reducing the loss furthest;
5. External loading film system to make the setting easily.
6. Enclosed mechanism is used to prevent dust entering effectively.
Specification
| Model | Umeo-420 |
| Bag length | 80-300mm |
| Bag width | 60-200mm |
| Width of packing film(max) | 420mm |
| Packing speed | 10-50 bag/min |
| Measuring range | 1000ml (Max.) |
| Roll Dia. of packing film | 300mm |
| Film material | Complex film:OPP/CPP,OPP/PE,Al.Film etc. |
| Film thickness | 40-100um |
| Power | 220V,50/60HZ,2.2Kw |
| Dimension | L1220*W1015*H1350mm |
| N.W. | 500Kg |
Application
screw counting packing machine is suitable for precise piece product packing,such as bolt,screw,nuts,toys,candy etc.
Sample bag
UMEO always pays much more attention to every part of each packing machine
scan following wechat for price directly
Foshan Umeo Packing Machinery Co.,Ltd is a high-tech enterprise,specializing in kinds of packing machinery development,design,manufacture,sales and service with more than 15 YEARS experience.
Umeo Packing Machinery has gained rich experience in packing machinery industry and has developed full-flown technique of several ranges,including vertical packing machine,granule packing machine,liquid packaging machine,powder packaging machinery,semi-auto filling machine,tea packing machine,high-speed packing machine,counting-packing system,production packing line etc.
