    Automatic ice cube packing machine

    Ask Lasest Price
    Brand Name : UMEOPACK
    Certification : CE
    Price : US $25000.00
    • Product Details
    • Company Profile

    Automatic ice cube packing machine

    Product Description

    Automatic ice cube packing machine



    Production Application
    Automatic candy weighing plastic bag packing machine is suitable for granule packing which requires fast and accurace measurement ,such as puffed food,potato chips,dried fruit,candy,cookies,biscuit,frozen meat ball,dumplings,rice ball,chocolate or chocolate bar,hardware parts,medicine etc.

    Automatic packing machine Umeo-820D
    Item No.
    Umeo-820
    Bag length
    100-400mm
    Bag width
    180-400mm
    Max. Film width
    820mm
    Packing speed
    5-30 packet/min
    Measuring range
    6000ml
    Gas consumption
    0.65Mpa,0.8m³/min
    Power requirement
    220V,50/60HZ,5.0Kw
    Packing dimension
    L1780xW1350xH1950mm
    N.W.
    900Kg
    Multihead weigher
    Item No.
    Umeo-D10(dimple)
    Weighting Range
    10-1000ml
    Accuracy
    ±0.5
    Max. speed
    65 packet/min
    Hopper volume
    2.5L
    Control panel
    7" Touch screen
    Options
    Timing hopper/Printer/Reject device
    Driving system
    Step motor
    Power requirement
    220V,1000W ,/50/60HZ,10A
    Packing dimension
    L1620xW1100xH1110mm
    G.W.
    380Kg
    Oblique Z type material elevator ( feeding)
    Item No.
    Umeo-S38
    Height
    3.75m (customized welcome)
    Conveying capacity
    3-6m³/h
    Material
    Carbon steel or SUS 304 frame,food grade plastic bucket
    Power supply
    380V/220V;50/60HZ,750W
    Packing dimension
    L2030xW880xH1000mm
    G.W.
    235Kg
    Supporting platform
    Item No.
    Umeo-Z02
    Dimension
    L1800xW1800xH1800mm
    Material
    Carbon steel or SUS304 frame
    Design
    Safe fence round
    G.W.
    365Kg
    Packing Dimension
    L2160xW1950xH630mm
    Finished product conveyor
    Item No.
    Umeo-S13
    Material
    Carbon steel or SUS304 frame
    Power
    50W,220V,50/60HZ
    Speed
    50-120 packet/min
    Dimension
    L1400xW500xH1400mm
    G.W.
    85Kg
    Automatic ice cube packing machine
    Automatic ice cube packing machine
    Automatic ice cube packing machine
    Automatic ice cube packing machine

    Main Features

    1. Imported PLC computer control system,color touch screen,easy operation and much more stable;
    2. Seperate pneumatic control and power control with low noise and more stable circuit ;
    3. Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation;
    4. Multiple automatic alarm protection,reducing the loss furthest;
    5. External loading film system to make the setting easily.
    6. Enclosed mechanism is used to prevent dust entering effectively.

    Certifications
    Automatic ice cube packing machine
    Automatic ice cube packing machine
    Automatic ice cube packing machine
    Automatic ice cube packing machine
    Detailed Images
    Automatic ice cube packing machine

    Automatic vertical packer

    Material: stainless steel 304

    Feature: fully automatic froming the bag,sealing and output; With Imported PLC computer control system,color touch screen.The design is customized.Multilanguage available with the same packaging machinery,Requires working environment is low .


    Multihead weigher

    Material: stainless steel 304
    Feature: Adopt high precision and accurate loadcell of famous brand,resolution is improved to 2 decimal.No products auto pause function can improve weighing stability;100 programs capacity can meet various weighing requirements and user-friendly help manu contributes to easy operation.

    Automatic ice cube packing machine
    Automatic ice cube packing machine

    Oblique Z type material elevator

    Material: stainless steel 304
    Feature: The elevator and multihead weigher are used together usually,contril circuits is usedto control the position of the material,realizing automatic feeding and stopping function;Suitable for the lifting granule material.

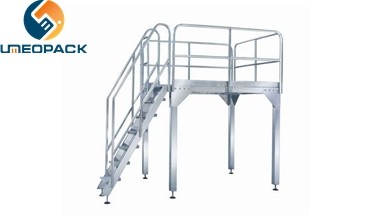

    Supporting platform

    Material stainless steel 304
    Feature: The supporting platform is suitable to bear the multihead weigher in order to operate conveniently.

    Automatic ice cube packing machine
    Our Service
    Automatic ice cube packing machine
    Automatic ice cube packing machine

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packing & Delivery
    Automatic ice cube packing machine
    Packaging
    Size
    186 (L) * 140 (W) * 188 (cm)
    Weight
    0.75T



    Packaging Details
    The normal package is non-fumigation plywood case.Export to european countries,.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
    Automatic ice cube packing machine
    Packaging
    Size
    17.56CBM
    Weight
    2.965T



    Packaging Details
    The whole set of the automatic candy weighing plastic bag packing machine are packed with the plywood case whichi non-fumigation and usually the package is not allowed pressed with heavy product as image displayed.
